*Standard discharge capacity:
1.Mean 5000mAh
2.Minimum 4900mAh
3. Charge: 0.5C(2.5A), 4.2V, 0.02C(100mA) cut-off-@ 25±2C
4. Discharge: 0.2C(1A), 2.5V cut-off @ 25+2℃
*Nominal voltage:3.58V
*Standard charge:
0.5C(2.5A) CC (constant current) charge to 4.20V, then CV(constant voltage) charge till charge current decline to 0.02C(100mA)
*Standard discharge:
0.2C(1A)CC (constant current) discharge to 2.5V
*Operating Voltage:
1.Cell Surface Temperature>0°C, 2.5~4.2V
2.Cell Surface Temperature0°C, 2.5-4.2V

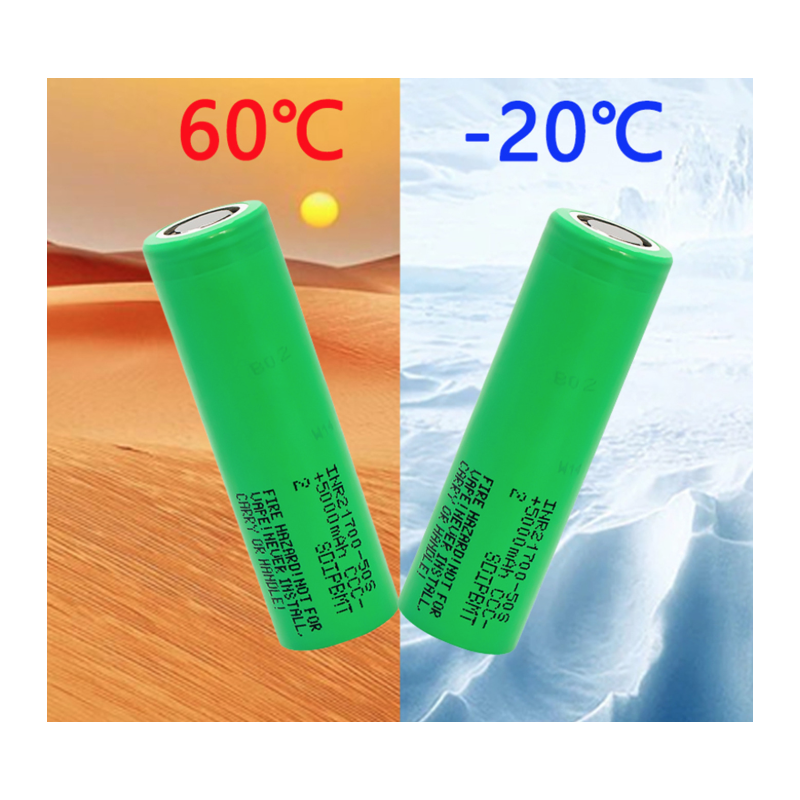

*Operating temperature (Surface)：
1.Charge: -10°C -60°C(recommended recharge release < 45°C)
2.Discharge: -20 ℃ to 60 ℃ (temperature protection threshold)
*Initial Impedance：
1.Max 4 m
2.Internal resistance measured at AC 1KHz after charge to shipment voltage
*Cell Weight:72.0g Max
*Cell Dimension (with tube):
1.Height : Max 71mm
2.Diameter : Max 21.7mm
*Max. continuous discharge (Surface temperature):
1.40A (Not trigger 80C temperature cut)
2.60A (With 80°C temperature cut)
*Max pulse discharge:180A 5s @25+2°C
